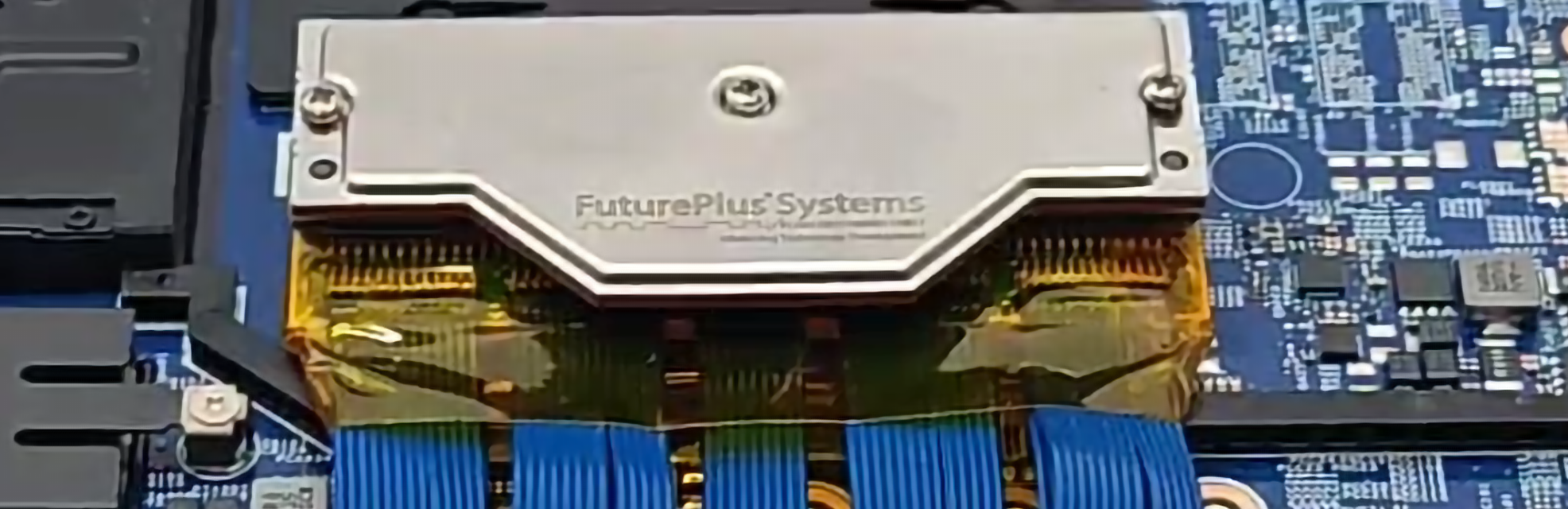

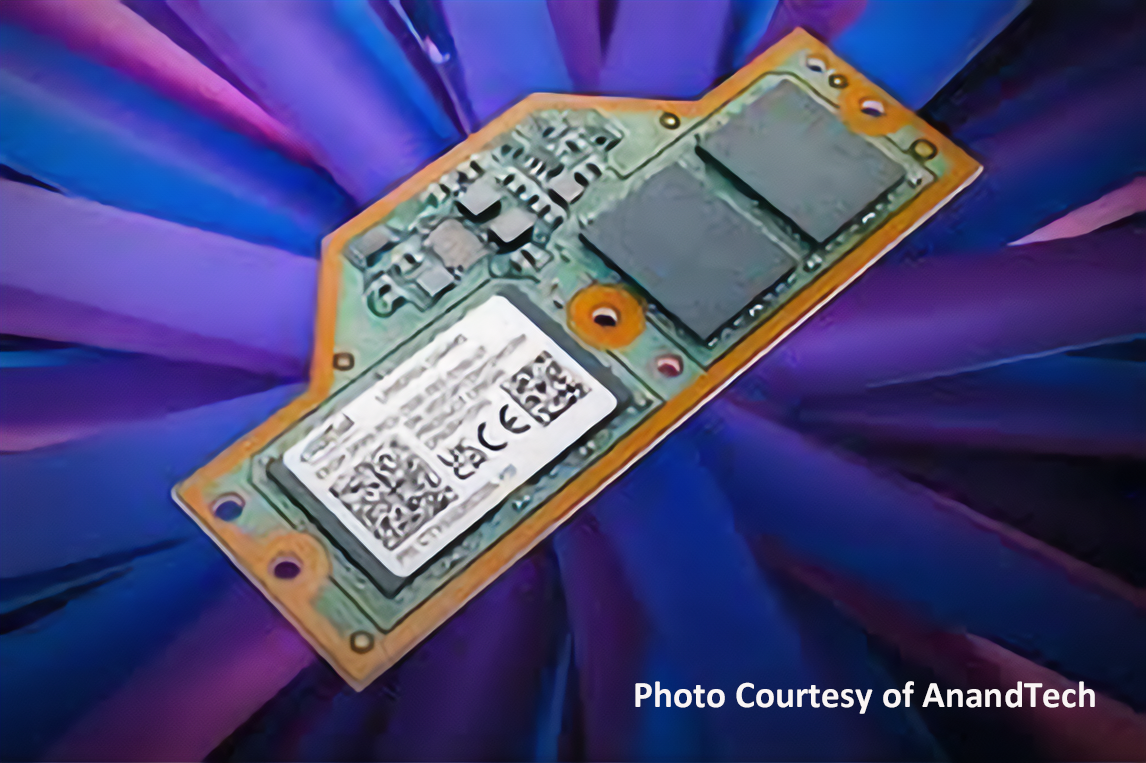

FS2910 LPDDR5 CAMM2 Interposer to the U4164A

FuturePlus Systems’ FS2910 LPDDR5 CAMM2 Interposer is designed for Address/ Command capture at 8533 MT/s.

• Quick and easy connection between the LPDDR5/X CAMM2 memory bus connector and the U4164A Keysight logic analyzer module

• Embedded tip resistor ensures optimum high frequency probing

• Complete and accurate State Analysis on the CA bus for 8533MT/s LPDDR5/X

• For multiple simultaneous CA bus analysis one U4164A LA card is needed for each CA bus

• Designed to be compatible with the JEDEC LPDDR5 CAMM2 specification

• Captures and decodes all of the commands on each CA bus

• Quick and easy setup using Keysight Eyescan with 5 ps/ 5 mV Resolution

• Requires Keysight DDR B4661A-5FP/-5TP/-5NP DDR5 Analysis SW

• 5Ghz Timing Analysis also available on the CA bus

Software

Qty (*) U4164A 136-channel Logic Analyzer Modules
Qty (1) M9505A chassis
Qty (1) B4661A-5FP/-5TP/-5NP DDR5 Analysis SW

* Each CA bus requires one card
