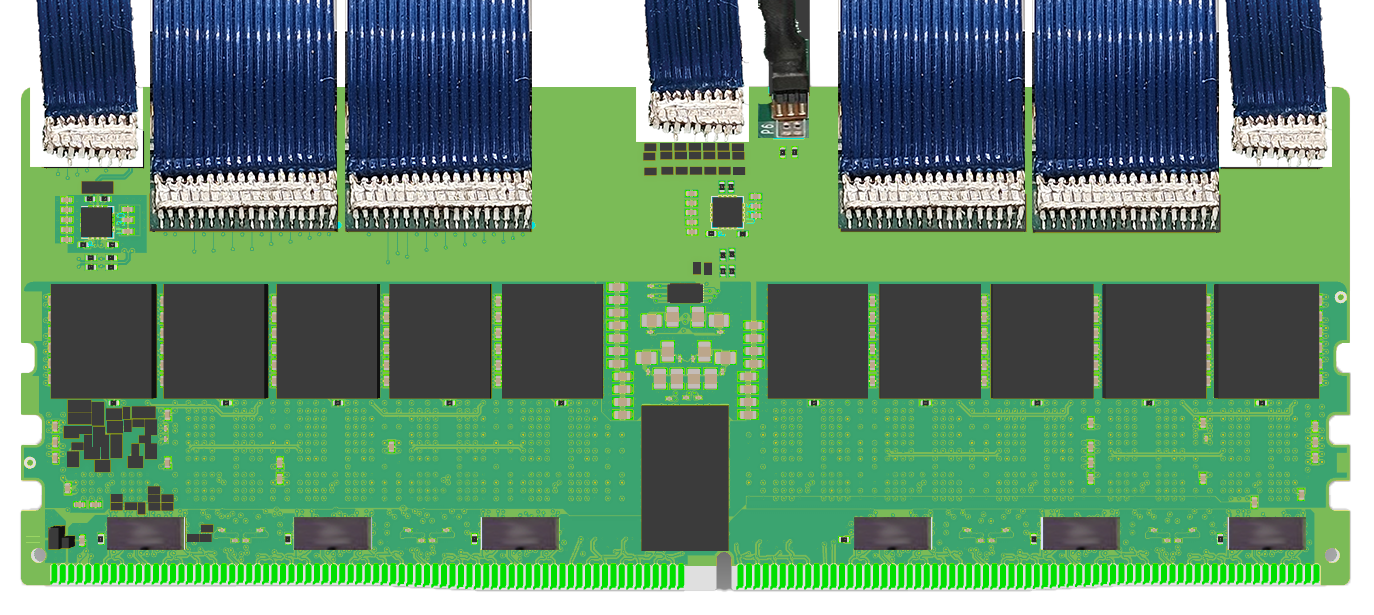

FS2680 DDR5 Instrumented DIMM for MRDIMM Gen2

FuturePlus Systems’ FS2680 DDR5 IDIMM™ for DDR5 MRDIMM and DDR5 Memory Channel Validation is the industry's first and only DDR5 MRDIMM solution with CA and BCOM capture available on MRDIMM's running at 12.8GT/s*.

  • Used for MRDIMM DDR5 Validation
  • Uses the industry standard MRCD/MDB and DRAM's
  • Samsung, Micron and SK Hynix DDR5 DRAMs initially available, Renesas, Montage, and Rambus MRCD/MDB (check availability)
  • IDIMM™ Customized for customer’s choice of MRCD/MDB/PMIC
  • Designed to be compatible with the JEDEC LPDDR5 CAMM2 specification
  • Clock Divider effectively Doubles the Logic Analyzer Trace Depth
  • No special BIOS or changes to IDIMM™ initialization required - Looks and feels like an MRDIMM



Software

Qty (2) U4164A logic analyzer modules

Qty (2) U4164A-02G speed grade options

Qty (1) M9505A chassis

Qty (1) M9537A embedded controller (or PCIe cable and adapter card to host from external user provided PC)

Qty (1) B4661A-5FP/-5TP/-5NP DDR5 Analysis SW



*Performance operation is designed to, not specified or guaranteed. Low, non-zero bit-error-rate expected.
