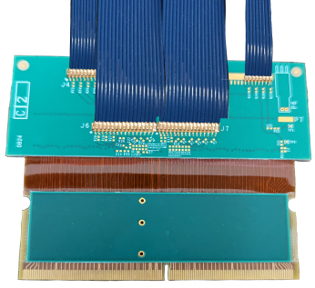

FS2612 DDR5 SO-DIMM Interposer exclusively for use with Keysight U4164A logic analysis modules

FuturePlus is the first and only supplier of DDR5 Logic Analyzer tools in the industry.

The FS2612 is our the latest logic analyzer probe used to test DDR5 SO-DIMM memory. It is designed to work exclusively with 2 Keysight U4164A logic analysis modules operating in either Quad Sample State or Quarter Channel 10GHz timing modes. This gives the user an extremely effective tool for debugging, testing and verifying DDR5 SO-DIMM's running at ~6400 MT/s.

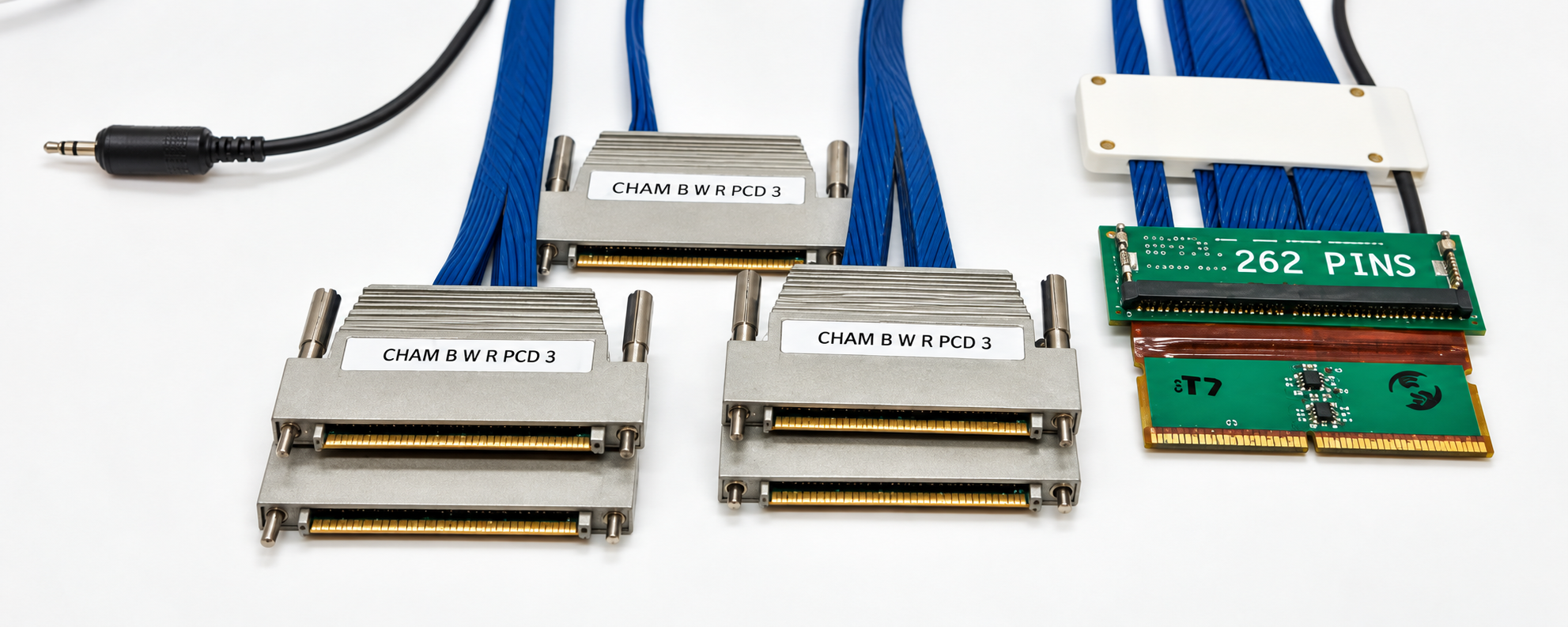

• Quick and easy connection between the DDR5 SO-DIMM memory bus connector and 2 U4164A-02G Keysight logic analyzer modules
• All signals are passively probed with a single probe point which allows for the least intrusive DDR5 interposer
• Complete and accurate 6400+ MT/s DDR5 CA bus analysis
• 2 Independent Logic Analyzer Machines for CHA and CHB
• Compatible with all JEDEC DDR5 SDRAM /SO-DIMMs like the FS2602. UDIMM's will need the FS2601 and RDIMM's will need the FS2670A or FS2600A.

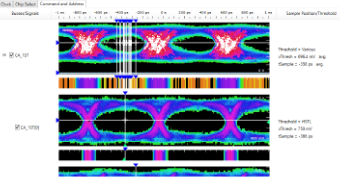

• Quick and easy setup using Keysight Eyescan with 5 ps resolution
• Clock Divider: Reduces the clock frequency for the logic analyzer’s capabilities in the routing path to the logic analyzer

Logic Analyzer Requirement –

(2) U4164A-02G logic analysis modules

• 1 module for CHA
• 1 module for CHB

*Note: FuturePlus has carefully simulated and designed this DDR5 SO-DIMM probe to work in your system and it extends the DDR5 bus less than 2.0 inch. Other factors can have a significant effect on the performance of the whole DDR5 bus analysis system including the BIOS settings of the memory controller, the target motherboard and SO-DIMM design, and the specific SO-DIMM socket being probed. All users are given 30 days to qualify this probe in their system.
