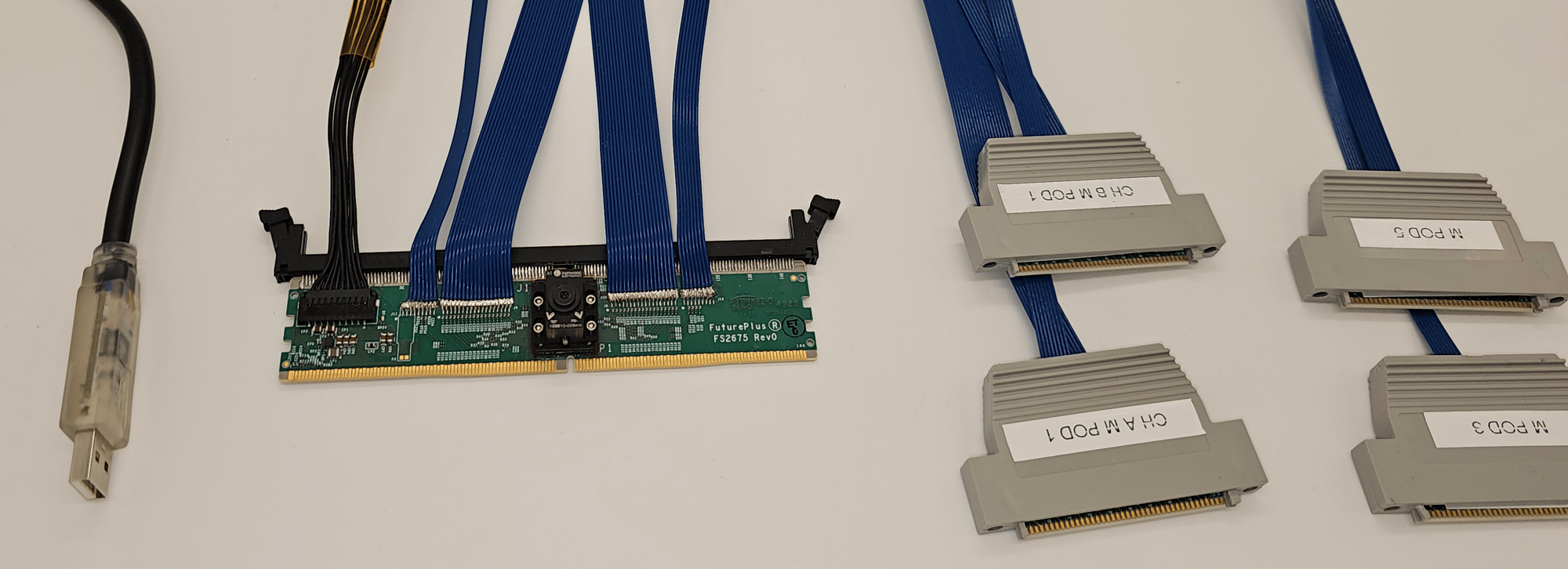

FS2675 RCD05 and RCD06 DDR5 RDIMM Interposer

FuturePlus System’s FS2675 DDR5 RDIMM Interposer for DDR5 DIMM and Memory Channel Validation is industry’s only DDR5 RDIMM interposer with Address/Command/Control capture up to 8000+ MT/s.

• New Training Implementation isolates the Interposer for automated training - Host Sees Interposer RCD on Sideband Bus

• Used for DDR5 RDIMM with RCD05 and RCD06 for Protocol Validation
• High Performance Socket has excellent electrical performance
• Clock Divider effectively Doubles the Logic Analyzer Trace Depth while keeping signal rate within spec
• Python and GUI interface controls the FS2675 RCD via USB from a host computer/laptop

Logic Analyzer Requirement

– (2) U4164A-02G logic analysis modules

• 1 module for CHA
• 1 module for CHB

– Qty (1) M9505A chassis

– Qty (1) M9537A embedded controller (or PCIe cable and adapter card to host from external user provided PC)

– Qty (1) B4661A-5FP/-5TP/-5NP DDR5 Analysis SW

Note: FuturePlus has carefully simulated and designed this FS2675 probe to work in your system and it extends the DDR5 bus less than 1.0 inch. Other factors can have a significant effect on the performance of the whole DDR5 bus analysis system including the BIOS settings of the memory controller, the target motherboard and DIMM design, and the specific DIMM socket being probed. All users are given 30 days to qualify this DDR5 DIMM probe in their system.
