FS2512 DDR4 SO-DIMM Interposer for use with the U4154A/B/64A Keysight Logic Analyzer

This product has been replaced by the FS2521. Please view the product page here.

The FS2512 is a logic analyzer probe used to test DDR4 SO-DIMM memory.  When used with the triggering and analysis capabilities of Keysight’s U4154A/B/64A logic analyzer modules, it gives the user an extremely effective tool for debugging, testing and verifying DDR4 SO-DIMMs.  Now qualified at 3200MT/s!!!!

View video – DDR4 Memory overview

  • Interposer Design – The FS2512 DDR4 SO-DIMM probe does not sacrifice a memory slot, so you can probe any DIMM, even in a fully populated memory bus.
  • All signals are probed passively. Read and Write Data signals are probed independently, which optimizes voltage threshold settings for the different burst types. View example.

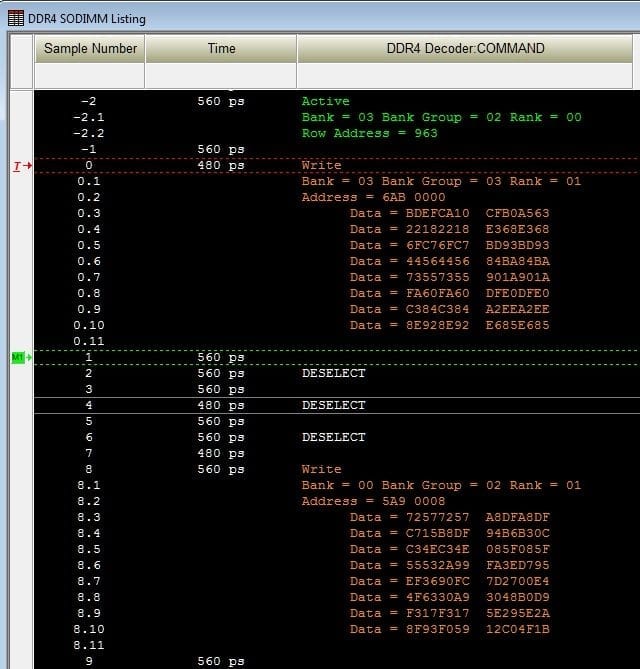

  • Complete and accurate State analysis up to 3200MT/s. View Screenshot.
  • Use Timing mode for deep asynchronous analysis at 12.5 GHz.

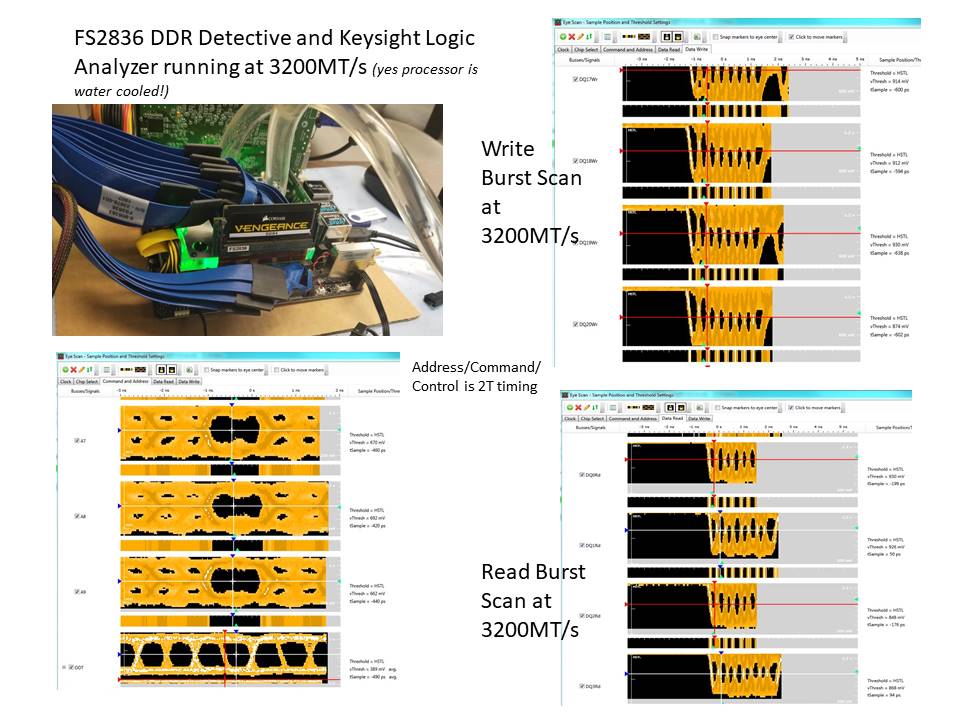

  • Measure signal integrity of each bit on the DDR4 SO-DIMM with Keysight EyeScan application (5ps x 5mV). View Screenshot.
  • Compatible with all 260-pin DDR4 SDRAM SO-DIMM.s
  • Quick and easy interposer connection between the DDR4 SO-DIMM memory bus connector and the U4154A/B/64A Keysight logic analyzer module.
  • Lower Cost and higher signal fidelity with direct attach cables, no need for the added expense of U4201 cables.
  • An economy version is available, the FS2513 which monitors only the Address, Command and Control signals.

View video – Memory Test Protocol Solutions

Software

The FS2512 includes DDR4 Protocol Analysis Software that provides both configuration files for the U4154A/B/64A Keysight logic analyzer modules operating in 64 bit environments, as well as a license free copy of the FuturePlus DDR4 Protocol Decoder.

Note: FuturePlus has carefully simulated and designed this DDR4 SO-DIMM probe to work in your system and it extends the DDR4 bus less than 2.0 inches. Other factors can have a significant effect on the performance of the whole DDR4 bus analysis system including the BIOS settings of the memory controller, the target motherboard and SO-DIMM design, and the specific SO-DIMM socket being probed. All users are given 30 days to qualify this DDR3 SO-DIMM probe in their system.

Logic Analyzer Requirements

For 2500MT/s and below the FS2512 requires

– 1  M9502A  two slot AXIe chassis

– 2  U4154A/B 136 channel Logic Analyzer Modules

OR

– 2  U4164A 136  channel Logic Analyzer Module

For Above 2500MT/s the FS2512 requires

FS1070 kit

– 1 M9502A two slot AXIe chassis

-3 U4154B 136 channel Logic Analyzer Modules

Note: the U4154A cannot support 3 cards melded

OR

-3 U4164A 136 channel Logic Analyzer Module
