FS4438/9 DisplayPort Analysis Probes For Use With Logic Analyzers

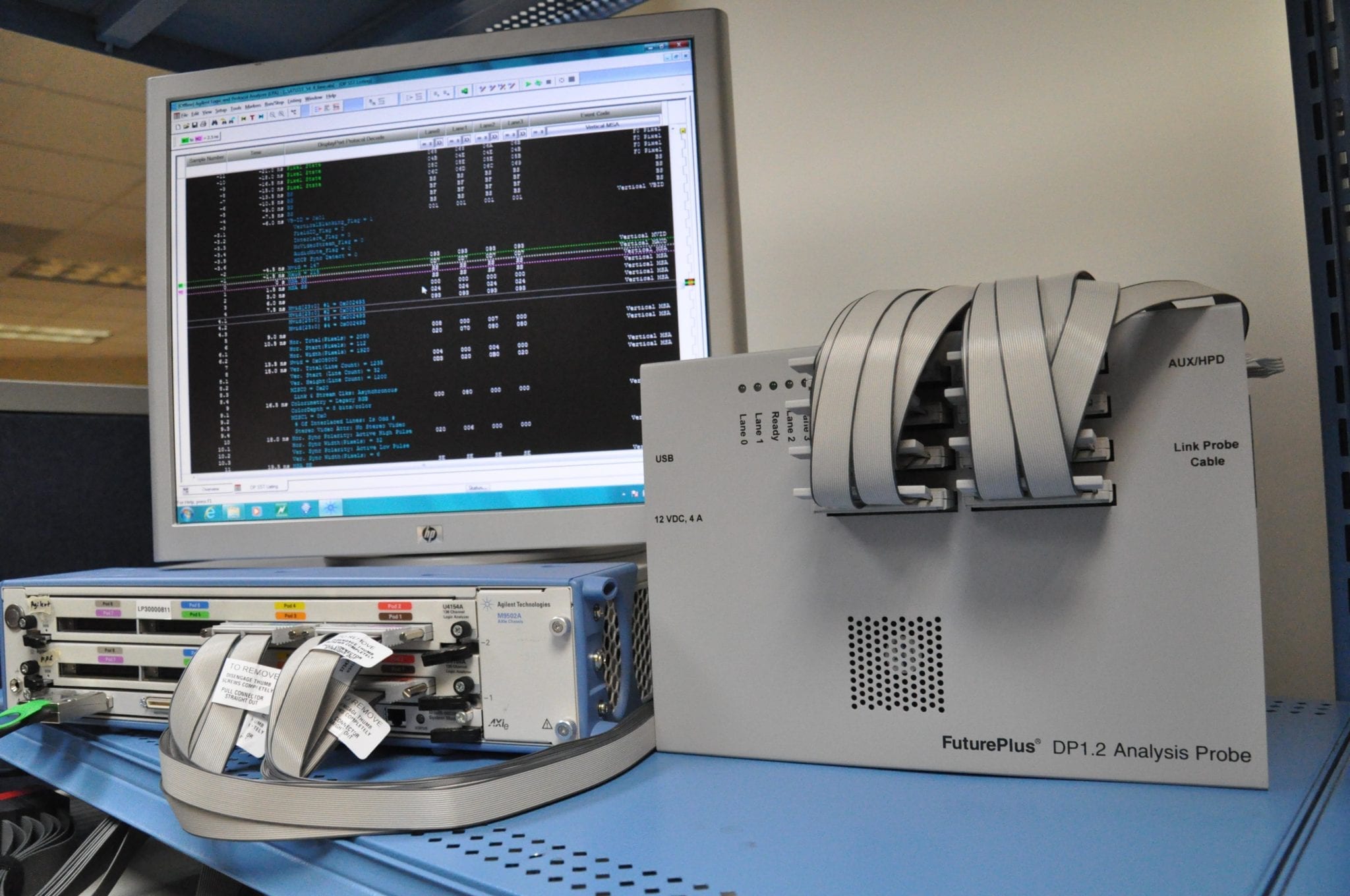

The FS4438/9 (DP 1.2, eDP 1.3 and DP 1.1a) is a logic analyzer Analysis Probe that non-intrusively probes the High Speed Main Link and the Auxiliary channel of a DisplayPort via a high impedance tap. The FS4438/9 is connected to the system under test using a interposer that also acts as a repeater and monitors the traffic in real time. Included software decodes and displays DisplayPort traffic using a logic analyzer. The Analysis Probe is controlled with a PC-based User Interface.

Please contact FuturePlus Systems for availability.
