LPDDR3

  • Description of the DRAM: 168 ball POP
  • Compatibility with the DDR Detective: Via the FS2826 single head midbus probe
  • Data Sheet



















  • Keysight Part Number: W3301A
  • Description of the DRAM: 178 ball x32
  • Compatibility with the DDR Detective: Via the FS2828 2 head midbus probe
  • Data Sheet







  • Description of the DRAM: 178 ball Signal Integrity Interposer
  • Compatibility with the DDR Detective: Via the FS2827 Flying Lead
  • Data Sheet







  • Description of the DRAM: 253 ball 2x32
  • Compatibility with the DDR Detective: Via the FS2828 2 head midbus probe
  • Data Sheet







  • Description of the DRAM: 253 ball 2 channel x32
  • Compatibility with the DDR Detective: Via the FS2827 Flying Lead
  • Data Sheet





DDR3

  • Keysight Part Number: W3633A
  • Description of the DRAM: x4/x8 78 ball
  • Compatibility with the DDR Detective: Via the FS2425 Cable
  • Data Sheet









  • Keysight Part Number:W3636A
  • Description of the DRAM: x16 96 ball unstacked
  • Compatibility with the DDR Detective: Via the FS2425 Cable
  • Data Sheet





LPDDR4

  • Description of the DRAM: 200 ball Signal Integrity Interposer
  • Compatibility with the DDR Detective: Via the FS2827
  • Data Sheet









  • Keysight Part Number: W6601A
  • Description of the DRAM: 200 ball CH A probed
  • Compatibility with the DDR Detective: Via the FS2852 61 pin ZIF with RC’s replaced with 0 ohm
  • Data Sheet







  • Keysight Part Number: W6602A
  • Description of the DRAM: 200 ball CH A and CH B probed
  • Compatibility with the DDR Detective: Via the FS2828 two headed midbus probe
  • Data Sheet





DDR4

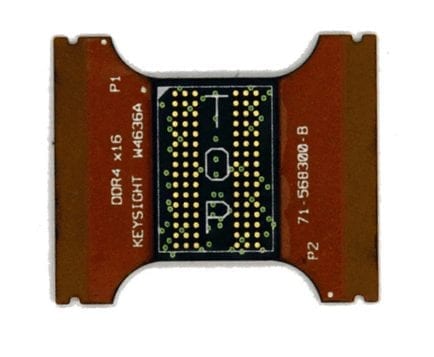

  • Keysight Part Number: W4636A
  • Description of the DRAM: x16 96 pin ball, Operation < 2.4GT/s
  • Compatibility with the DDR Detective: Via the FS2425 cable
  • Data Sheet







  • Keysight Part Number: W4641A
  • Description of the DRAM: x16 96 Ball, Operation 3.2GT/s
  • Compatibility with the DDR Detective: Via the FS2852 61 pin ZIF with RC’s replaced with 0 ohm
  • Data Sheet







  • Keysight Part Number: W4643A
  • Description of the DRAM: x4/x8 78 ball
  • Compatibility with the DDR Detective: Via the FS2852 61 pin ZIF with RC’s replaced with 0 ohm
  • Data Sheet
