FS2520 DDR4 DIMM Interposer exclusively for use with Keysight U4164A logic analysis modules

The fastest DDR4 tool in the industry. Capturing Data at 4000+MT/s!

View video – DDR4 Memory overview

The FS2520 is our newest and fastest logic analyzer probe used to test DDR4 DIMM memory. It is designed to work exclusively with 3 Keysight U4164A logic analysis modules operating in either Quad Sample State or Quarter Channel 10GHz timing modes. This gives the user an extremely effective tool for debugging, testing and verifying DDR4 DIMMs running above 4000MT/s. It’s like having a 100 channel scope.

  • Interposer Design – The FS2520 DDR4 DIMM probe does not sacrifice a memory slot, so you can probe any DIMM, even in a fully populated memory bus.
  • All signals are probed passively.

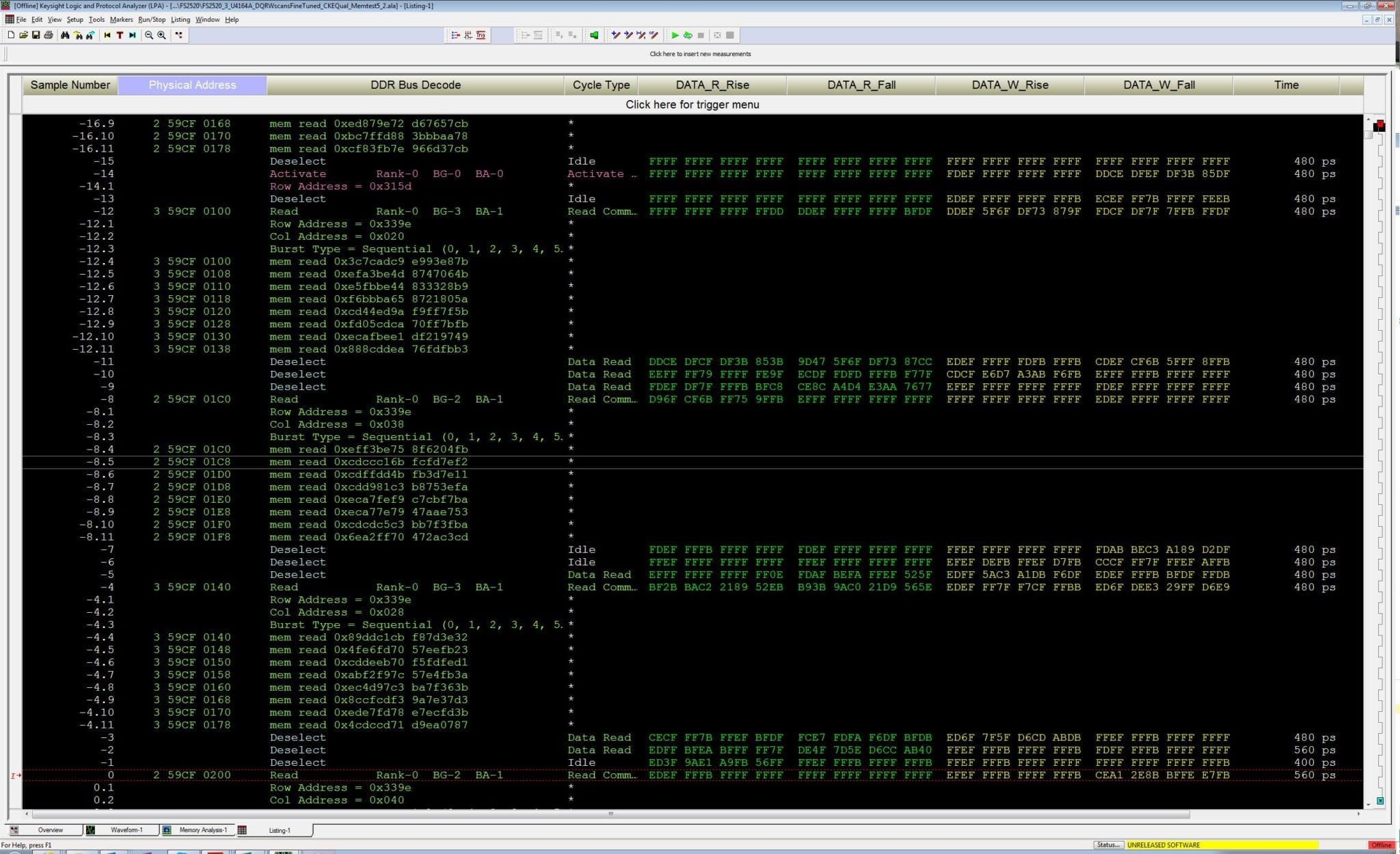

  • Complete and accurate State analysis over 4000MT/s. View Screenshot.
  • Quarter Channel Timing mode provides deep 10GHz asynchronous sampling of all Data signals, the analyzer can be used as a 100 channel scope

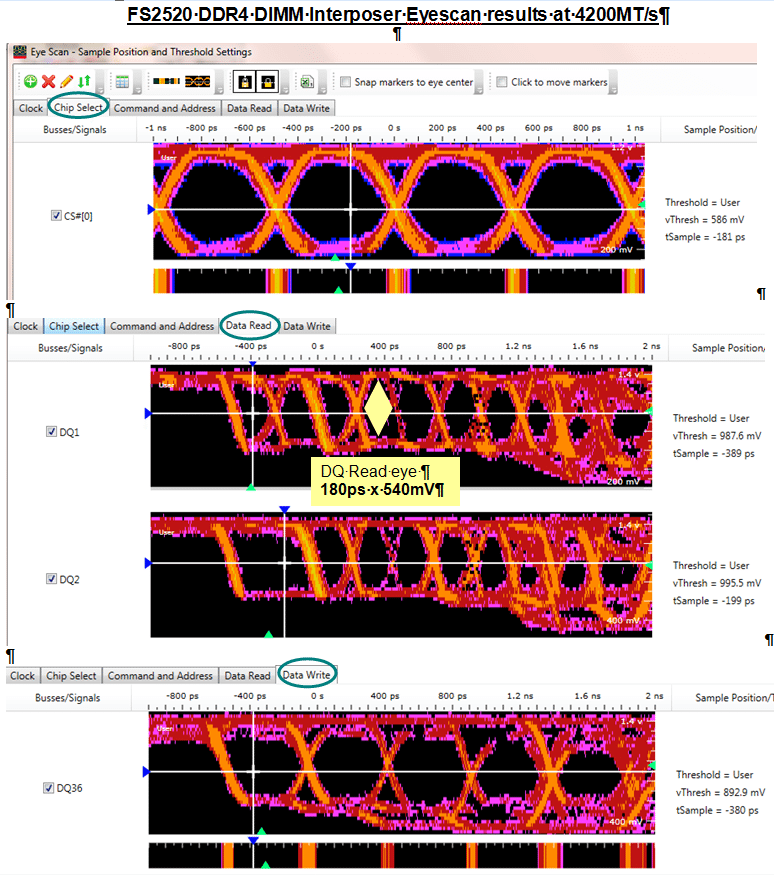

  • Measure signal integrity of each bit on the DDR4 DIMM with Keysight EyeScan application. View Screenshot.
  • Compatible with all 288-pin DDR4 SDRAM UDIMMs, RDIMMs and LRDIMMs.
  • Quick and easy interposer connection between the DDR4 DIMM memory bus connector and the U4164A Keysight logic analyzer module.
  • Lower Cost and higher signal fidelity with direct attach cables, no need for the added expense of U4201 cables.
  • Short DDR4 DIMM probe etch length makes it more reliable in marginal systems.

View video – Memory Test Protocol Solutions

Note: FuturePlus has carefully simulated and designed this DDR4 DIMM probe to work in your system and it extends the DDR4 bus less than 1.0 inch. Other factors can have a significant effect on the performance of the whole DDR4 bus analysis system including the BIOS settings of the memory controller, the target motherboard and DIMM design, and the specific DIMM socket being probed. All users are given 30 days to qualify this DDR3 DIMM probe in their system.

Logic Analyzer Requirement

– (3) U4164A logic analysis modules

Request More Information/Quote or Call: (603) 472-5905
